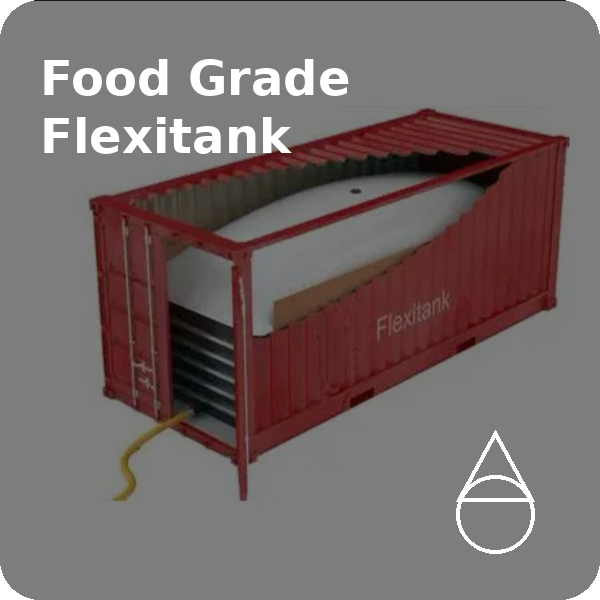

Product Overview
Our Food Grade Flexitank is specially designed for bulk transportation of food-grade non-hazardous liquids. Manufactured with 100% virgin food-grade polyethylene (PE) inner film and high-strength polypropylene (PP) woven outer cover, it fully complies with FDA, EU and other international food contact regulations.
Produced in a dedicated clean food-grade workshop, each flexitank undergoes strict quality inspection before shipment. The single-use design completely eliminates cross-contamination risks from reused containers, making it the safest choice for edible oil, fruit juice, syrup, wine and other food-sensitive liquids.
Perfectly fitted for standard 20ft dry containers, it maximizes loading capacity up to 24,000-26,000 liters per container, significantly reducing per-unit transportation cost compared to drums, IBCs or ISO tanks.
Core Advantages
✅ 100% Food-Grade Safety & Hygiene
– Virgin food-grade PE raw material, non-toxic and odor-free
– Complies with FDA, EU and FSSC22000 food contact standards
– Meets HACCP, Halal and Kosher requirements
– Dedicated clean workshop production with full batch traceability
– 100% new PE resin, no recycled material added
✅ Zero Cross-Contamination Risk
– Single-use design – each shipment gets a brand-new flexitank
– No cleaning required, no residual contamination risk
– Fully eliminates flavor transfer between different cargoes
– Safer and more hygienic than reusable tanks or drums
✅ Premium Barrier Performance
– Multi-layer PE film provides excellent oxygen barrier
– Optional EVOH barrier film (O₂ transmission rate ≤1cm³/m²·24h·0.1MPa)
– Protects product freshness, taste and nutritional value
– UV-stabilized material for long-haul ocean transport
– Available with aluminum-plastic film for ultra-high barrier needs
✅ Maximum Cost Savings
– 30%+ lower total cost compared to drums or IBCs
– Higher loading volume – up to 26,000L per 20ft container
(vs only ~16,000L with drums / ~20,000L with IBCs)
– Lightweight design saves on dead-weight freight charges
– No cleaning fees, no return freight, no tank rental costs
– Approx. 2,000 RMB per unit vs 10,000+ RMB for 80 drums
Technical Specifications
| Item | Specification |
| Product Name | Food Grade Flexitank |
| Inner Film | 3-4 layers virgin food-grade PE<br>(EVOH / Alu-foil barrier available) |
| Outer Cover | High-strength PP woven fabric, food-grade standard |
| Capacity Range | 16,000L – 26,000L (customizable) |
| Standard Capacity | 24,000L (24m³) for 20ft dry container |
| Container Type | Standard 20ft GP dry container |
| Valve Type | Top loading (2.5″/3″) + Bottom discharge (3″) food-grade valve |
| Valve Structure | Double-layer sealing ring + snap-lock closure |
| Loading Method | Pump filling / gravity filling |
| Discharge Method | Bottom discharge with hose connection, low residue |
| Oxygen Barrier | Standard: 3-layer PE<br>Premium: EVOH film (≤1 cm³/m²·24h·0.1MPa) |
| Working Temperature | -10℃ to +60℃ (standard) |
| Transport Mode | Sea freight, Road, Railway multimodal |
| Installation Time | Approx. 20-30 minutes (2 workers) |
| Loading Time | Approx. 1 hour |
| Unloading Time | Approx. 30 minutes |
| Safety Features | Pressure relief valve, leak-proof hot-weld seams, abrasion-resistant outer fabric |
| Usage | Single use only |
| Disposal | PE & PP materials are recyclable |
| Certifications | FDA, EU food grade, FSSC22000, Halal, Kosher, ISO 9001, COA |
| Production Standard | Clean workshop production, full batch traceability |
| Lead Time | 7-15 days for standard orders |
Typical Applications
| Industry Category | Specific Products |
| Edible Oils & Fats | Palm oil, soybean oil, sunflower oil, olive oil, coconut oil, corn oil, canola oil |
| Fruit Juices & Concentrates | Apple juice, orange juice, grape juice concentrate, fruit purees |
| Syrups & Sweeteners | Glucose syrup, liquid sugar, honey, molasses, fructose syrup, sorbitol |
| Wine & Alcohol | Bulk wine, grape must, base spirits, rice wine, cider |
| Dairy & Beverages | Whey, milk protein solution, liquid sugar, coffee extract |
| Food Ingredients | Glycerin (food grade), vinegar, soy sauce, food additives |
| Beverage Bases | Concentrated drinks, tea extracts, malt extract |
Why Choose Our Food Grade Flexitank?
🏭 Dedicated Food-Grade Line – clean workshop with strict hygiene control
📜 Full Certificates – FDA, FSSC22000, Halal, Kosher, complete documentation
🔬 Premium Barrier Options – EVOH and aluminum-plastic film for sensitive products
🛡️ Quality Guarantee – 100% inspection before shipment, zero-defect delivery
📦 Customization – custom capacity, valves, barrier levels, branding printing
👨🔬 Technical Support – on-site installation guidance, operation training, full documentation
The ideal bulk transport solution for food and beverage producers who refuse to compromise on quality and safety.
